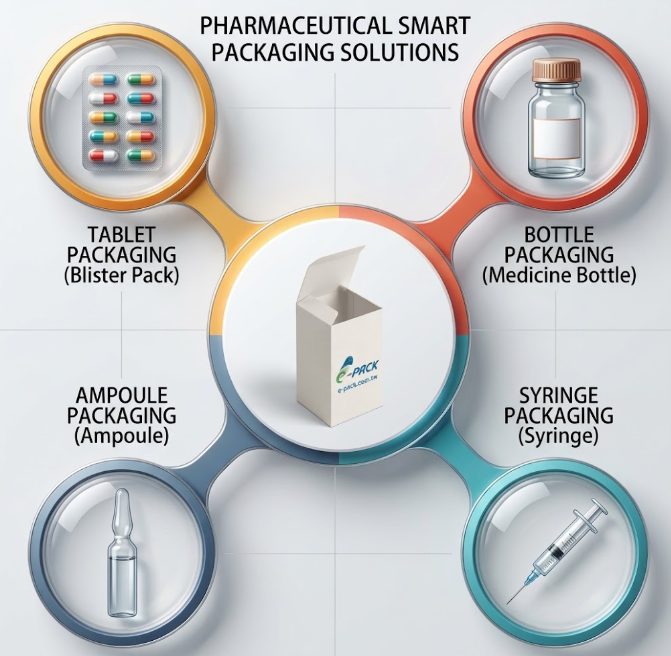

  1. Pharmaceutical smart packaging solutions – tablet, bottle, ampoule and syringe packaging
  2. CA120 Intermittent Automatic Cartoning Machine
  3. CA130 Intermittent Automatic Servo Cartoning Machine
  4. CA280 Continuous Automatic Cartoning Machine
  5. CA300 Continuous Automatic Servo Cartoning Machine
  6. Finished cartons – pharmaceutical and biotech packaging examples

Automatic Cartoning Machine

EXPERT IN COMPLEX & MULTI-COMPONENT PACKAGING

Flexible feeding system for diverse combinations (bottles, droppers, blisters, syringes, tubes, and manuals).

  • Multi-station modular infeed (supports manual & robotic loading)
  • High flexibility for mixed packaging and rapid line changeover
  • Tailored to custom product dimensions and special box structures

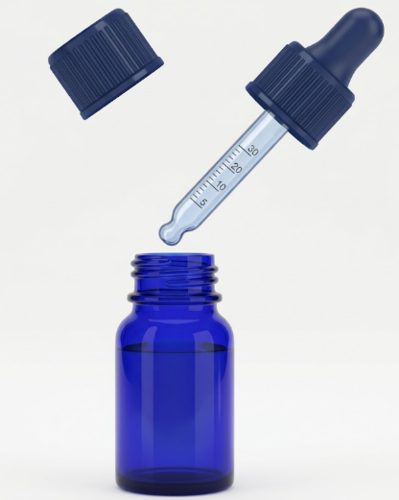

Dropper bottle

Supports mixed-component cartoning in a single box:

BottlesDroppersBlistersSyringesTubesManuals

MODELS: CA120 / CA130 / CA280 / CA300

分類:

Model Lineup

Intermittent and continuous motion cartoners, from 100 to 280 cartons per minute.

CA120 Intermittent Automatic Cartoning MachineCA120Intermittent Automatic0–100 cartons/minCA130 Intermittent Automatic Servo Cartoning MachineCA130Intermittent Automatic Servo0–110 cartons/minCA280 Continuous Automatic Cartoning MachineCA280Continuous Automatic0–280 cartons/minCA300 Continuous Automatic Servo Cartoning MachineCA300Continuous Automatic Servo0–280 cartons/min

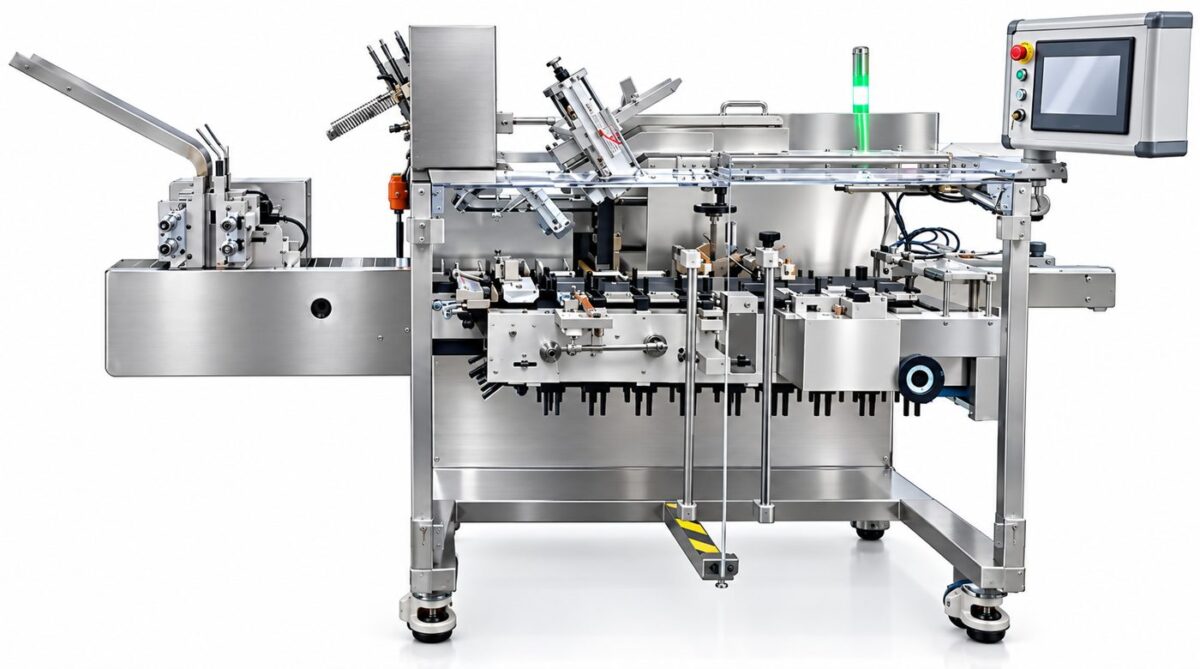

CA120 Intermittent Automatic Cartoning Machine

CA120CA120 Intermittent Automatic Cartoning Machine

Model CA120
Production Capacity 0- 100 cartons/minute
Carton Specification (L x W x H) (60-180mm) x (30-110mm) x (15-60mm)
Unfolded Leaflet (L x W) (85-210mm) x (80-290mm)
Folded Leaflet (L x W) (85-210mm) x (20-50mm)
Carton quality requirement 250-350gm/m2, white cardboard
User manual paper leaflet quality requirement 50-70gm/m2

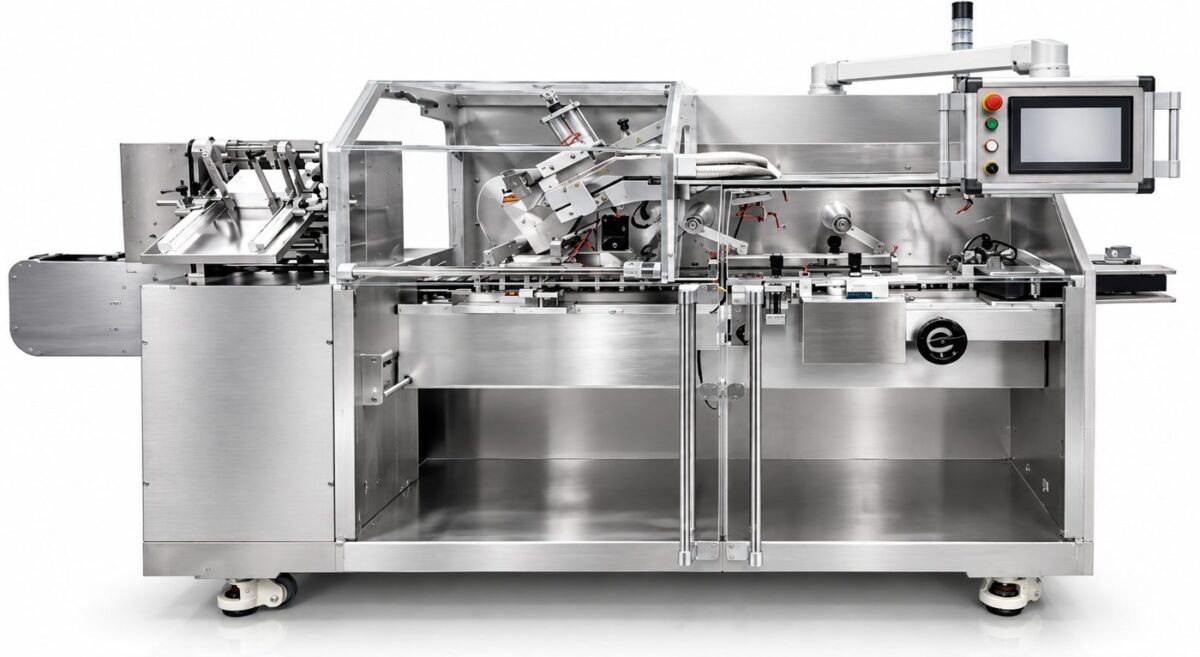

CA130 Intermittent Automatic Servo Cartoning Machine

CA130CA130 Intermittent Automatic Servo Cartoning Machine

Model CA130
Production Capacity 0- 110 cartons/minute
Carton Specification (L x W x H) (60-180mm) x (30-110mm) x (15-60mm)
Unfolded Leaflet (L x W) (85-210mm) x (80-290mm)
Folded Leaflet (L x W) (85-210mm) x (20-50mm)
Carton quality requirement 250-350gm/m2, white cardboard
User manual paper leaflet quality requirement 50-70gm/m2

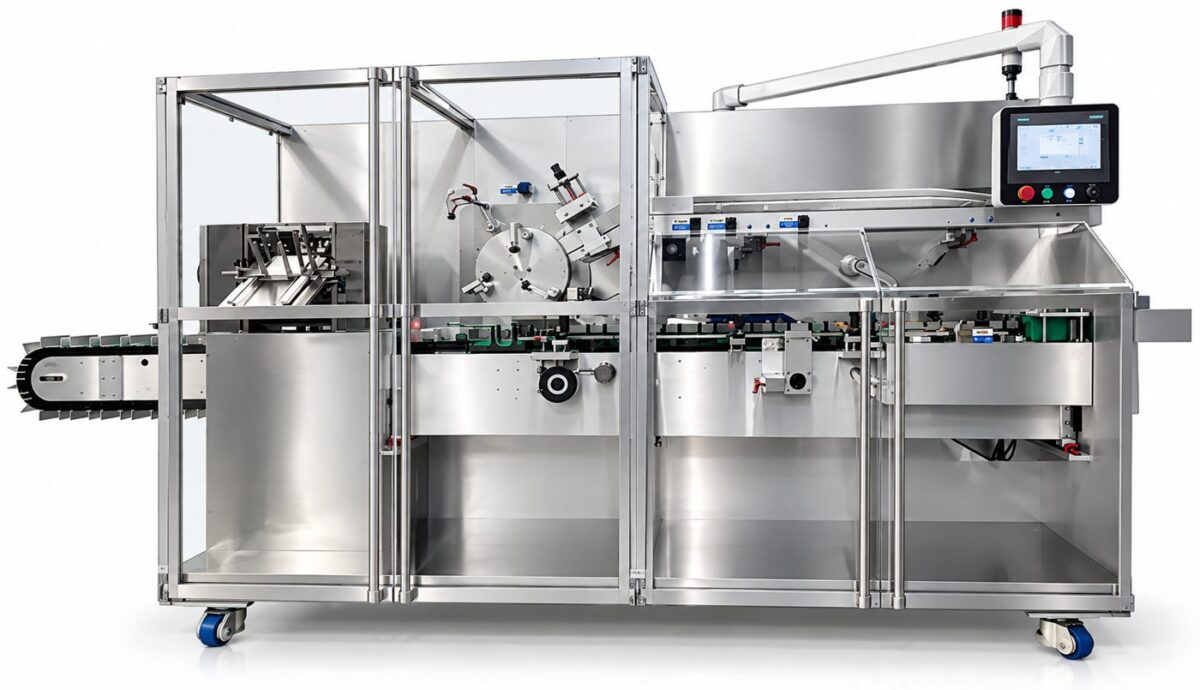

CA280 Continuous Automatic Cartoning Machine

CA280CA280 Continuous Automatic Cartoning Machine

Model CA280
Production Capacity 0- 280 cartons/minute
Carton Specification (L x W x H) (60-180mm) x (30-110mm) x (15-60mm)
Unfolded Leaflet (L x W) (85-210mm) x (80-290mm)
Folded Leaflet (L x W) (85-210mm) x (20-50mm)
Carton quality requirement 250-350gm/m2, white cardboard
User manual paper leaflet quality requirement 50-70gm/m2

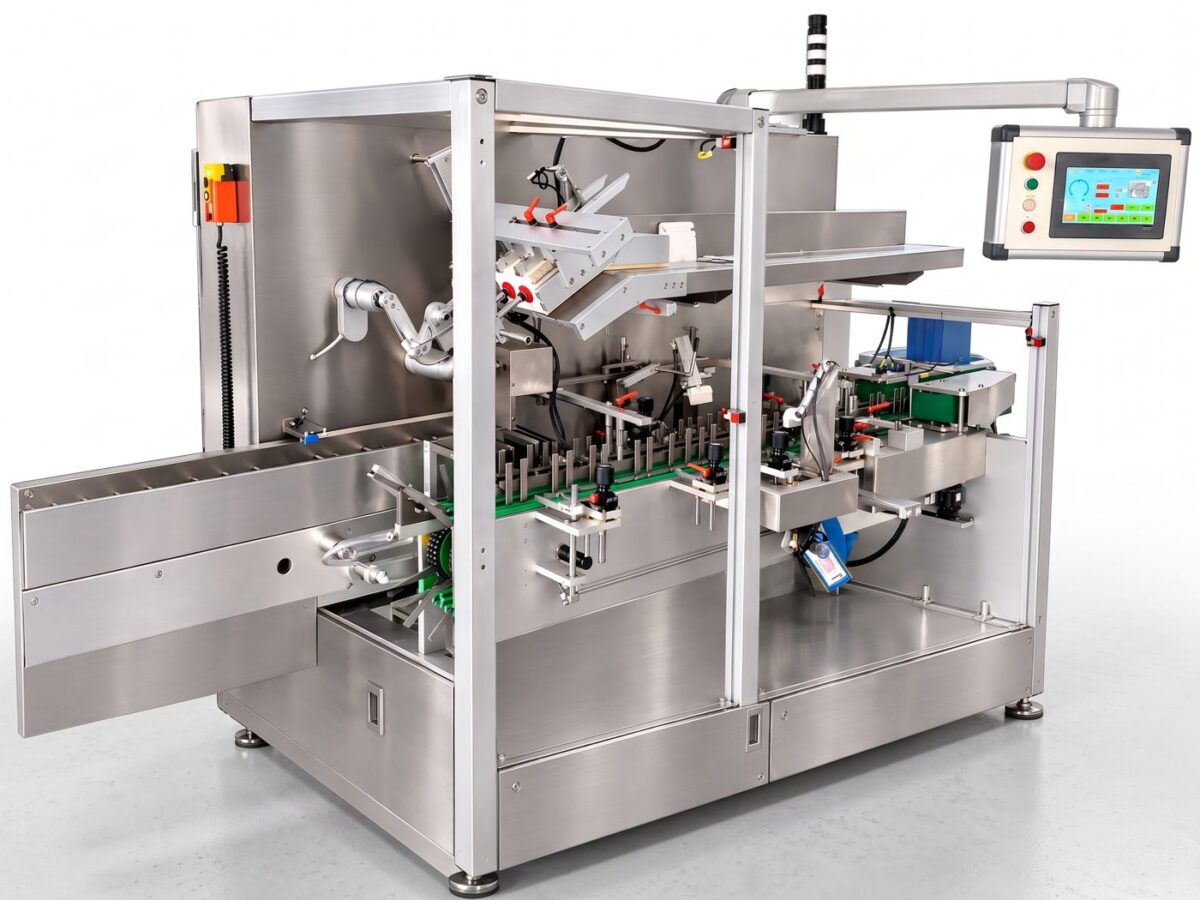

CA300 Continuous Automatic Servo Cartoning Machine

CA300CA300 Continuous Automatic Servo Cartoning Machine

Model CA300
Production Capacity 0- 280 cartons/minute
Carton Specification (L x W x H) (60-180mm) x (30-110mm) x (15-60mm)
Unfolded Leaflet (L x W) (85-210mm) x (80-290mm)
Folded Leaflet (L x W) (85-210mm) x (20-50mm)
Carton quality requirement 250-350gm/m2, white cardboard
User manual paper leaflet quality requirement 50-70gm/m2

Model Comparison

All models share the same carton and leaflet range; they differ in motion type and output speed.

Specification CA120 CA130 CA280 CA300
Motion type Intermittent Intermittent · Servo Continuous Continuous · Servo
Production Capacity (cartons/min) 0–100 0–110 0–280 0–280
Carton Specification (L x W x H) (60-180mm) x (30-110mm) x (15-60mm)
Unfolded Leaflet (L x W) (85-210mm) x (80-290mm)
Folded Leaflet (L x W) (85-210mm) x (20-50mm)
Carton quality requirement 250-350gm/m2, white cardboard
User manual paper leaflet quality requirement 50-70gm/m2

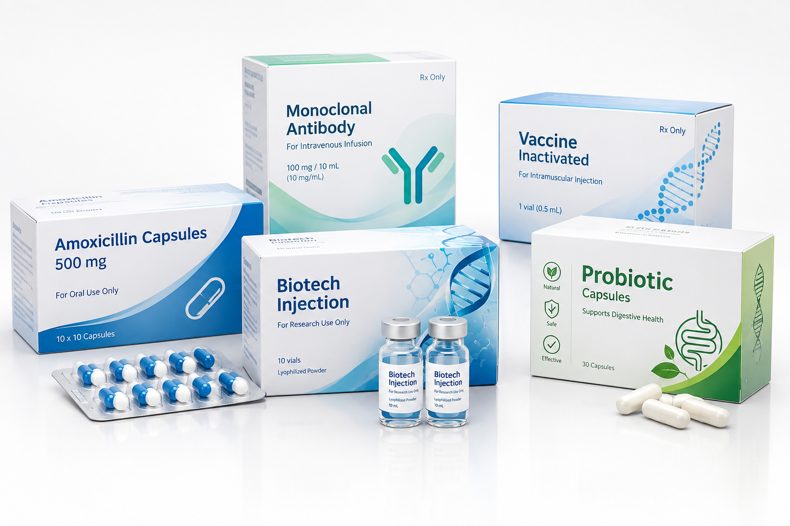

Finished cartons – pharmaceutical and biotech packaging examples

Finished Packaging & Applications

Designed for pharmaceutical, biotech and health-care products that combine several components in one carton.

  • Tablet packaging (blister packs)
  • Bottle packaging (medicine bottles, dropper bottles)
  • Ampoule and vial packaging
  • Syringe packaging
  • Capsules, probiotics and supplements
